EngineAI Robotics logoEngineAI Robotics

SA01

Price
CNY 38,500+
Type
Humanoid Robots · Human-scale Humanoid
Applications
Research & Education · Developer Kit / Research & Education · Education Platform / Research & Education · Research Platform
Status
Discontinued
Availability
Discontinued
Purchase
Not disclosed
Release Date
Jul 29, 2024
Country/Region
China
Last Verified
2026-07-30
How classification and status work

Category describes physical structure and function; wheels alone do not determine whether a robot is humanoid. Product stage describes demonstrated maturity. Commercial availability describes current access: a commercial product may still be limited to pilot customers. Neither stage nor availability alone proves that a product can be purchased. Unknown facts remain unknown.

12 DOF
Total degrees of freedom
Approx. 1.35 m
Height
40 kg
Weight
10–15 kg
General Payload

SA01 is an open-source, highly expandable bipedal robot platform with 12 degrees of freedom, a 40 kg body, 1 m/s movement speed, 160 Nm maximum joint torque, and about 2 hours of runtime.

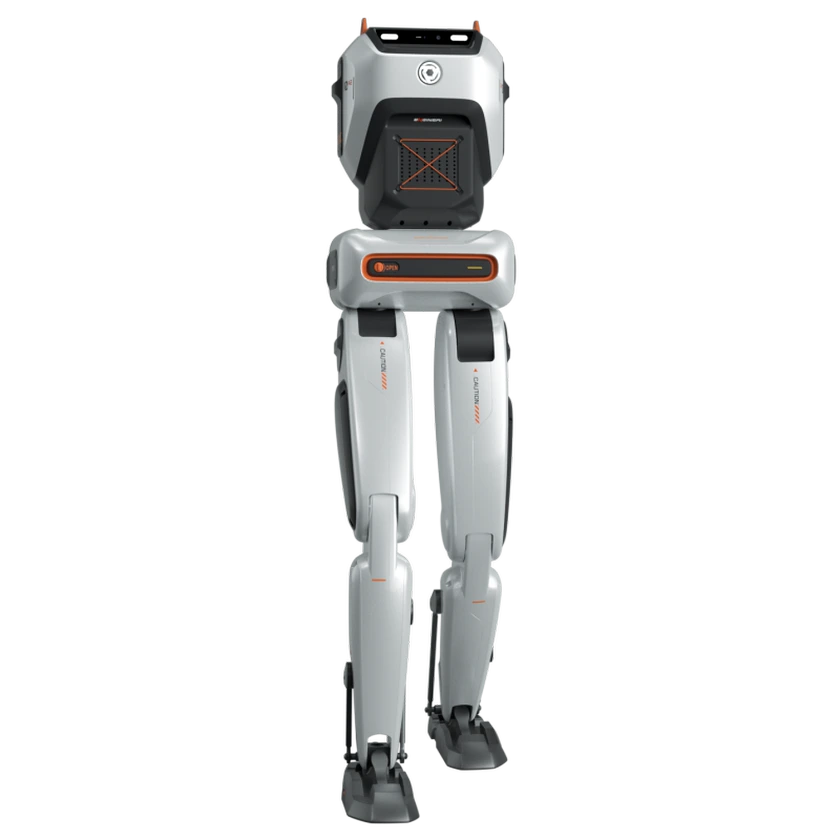

1 / 1SA01

Intelligence Profile

Control ApproachOfficial claim
Classical control

Capability Map

MobilityOfficial claim
Walking

ENGINEAI describes SA01's proprietary straight-knee gait and lists walking and running performance with a nominal 1 m/s mobility speed.

MobilityOfficial claim
Balance

ENGINEAI lists real-time balance control and an IMU for posture sensing and balance control on SA01.

Hardware Specification

Physical Specifications

Leg Length (Thigh + Shank)
Thigh 400 mm / calf 400 mm
Locomotion Type
Bipedal locomotion with a self-developed straight-knee gait
Materials
Aerospace-grade aluminum alloy
Dimensions (Standing)
1350 mm × 250 mm × 350 mm
Total degrees of freedom
12 DOF

Mobility & Payload

General Payload
10–15 kg
Peak Joint Output Torque
160 Nm
Walking Speed
1 m/s

Mechanical and mounting

Height
Approx. 1.35 m
DOF per Leg
6 per leg
Weight
40 kg

Mechanical Structure

Actuator Model
Self-developed S160 joint motor
Joint Encoder
Dual absolute magnetic encoders in the joint design, allowing joint positions to be recovered after power loss and restart
Joint Type
Integrated planetary quasi-direct-drive joint module, full-stack in-house developed

Sensors

IMU
High-precision IMU for attitude sensing and balance control

Battery and Runtime

Battery Capacity
15 Ah
Battery Type
Lithium battery pack
Battery Voltage
54.6 V
Hot-swap Support
Quick-release battery
Power Supply
15 Ah; 0.819 kWh; maximum voltage 54.6 V
Runtime
2 h

Compute Platform

Onboard Compute
NeZha onboard mainboard (called NaZha elsewhere in the repository)
Software Algorithm
Open-source AimRT and reinforcement learning

Reliability and environment

Emergency Stop
Emergency stop control that cuts motor power; LB+BACK on the gamepad also disables the motors
Operating temperature
-20 °C to 55 °C

Interaction and Communication

Remote Controller
Wireless gamepad with a plug-in receiver, providing LS/RS sticks, CROSS pad and LB/RB modifier keys for locomotion and bias trimming

Development and Expansion

Operating Modes
ESTOP, PASSIVE, bent-knee standing, straight-knee standing, RL standing and RL walking

Commercial Status

Status
Discontinued
Price
CNY 38,500+
Release Date
Jul 29, 2024

Deployment records

Progress, changes and sources from real-world projects.

Project source ↗
Pilot
Partner
Benenden Bilingual School Guangzhou · Venue
Scenario
Education Platform
Primary task
SA01 was introduced as a research and teaching aid in the school's wheeled-robotics course, providing students a practical platform to explore humanoid robotics and connect theory with practice. The source does not detail specific lesson tasks, pilot duration or later operating status.
Location
Benenden Bilingual School Guangzhou, Panyu District, Guangzhou, Guangdong, China
Started
2024-12-06
Last verified
2026-10-11
Robots deployed
1
Operating sites
1

Deployment timeline · 1

  1. SA01 is introduced into a Guangzhou school's wheeled-robotics course
As of the verified evidence; this is not live operating status.2026-10-11

Timeline

  1. Robot release
    SA01
