Waveshare
WAVEGO Pro

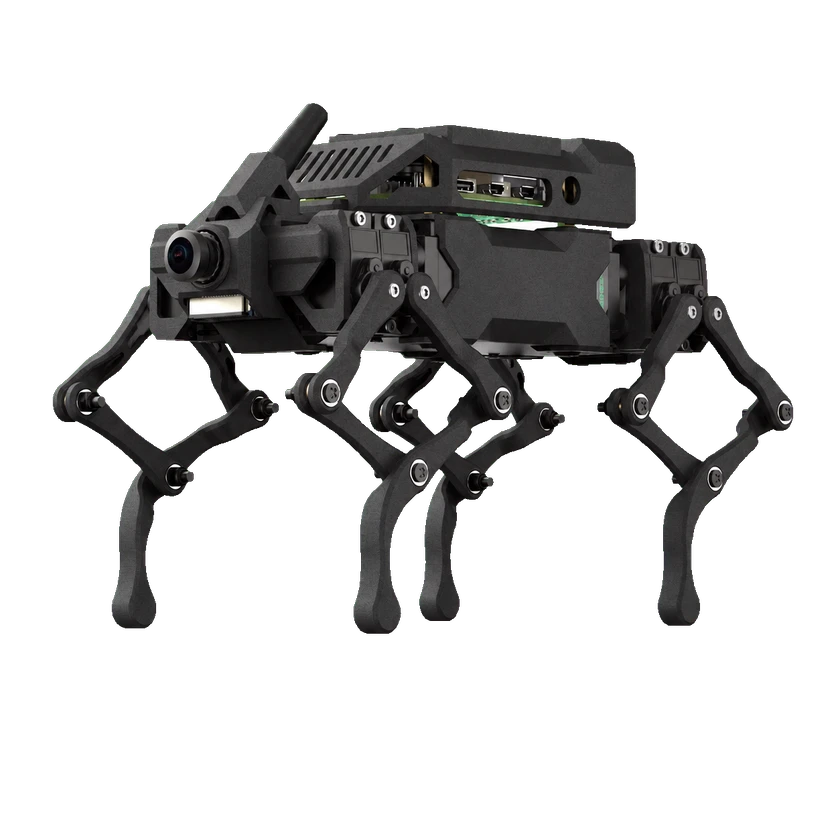

WAVEGO Pro PI5 KIT
Price
Unknown
Type
Quadruped Robots
Status
Commercial
Release Date
Unknown
Country/Region
China
Last Verified
2026-08-21
200 g maximum load
Payload
1–2 h
Runtime
554 g (with batteries)
Weight
WAVEGO Pro PI5 KIT is a Open-source bionic quadruped robot kit. from Waveshare. This source-backed profile records structured specifications including 1–2 h. Product stage, commercial availability, pricing, and delivery details are shown only when publicly verifiable.
1 / 1
Hardware Specification
Physical Specifications
Materials
5052 aluminum alloy and PA12 nylon structure.
Standing Dimensions
218 × 116 × 152 mm (standing)
Weight
554 g (with batteries)
Mobility & Payload
Payload
200 g maximum load
Degrees of Freedom
Total DOF
12 DOF
Mechanical Structure
Cooling System
Cooling fan included with the Raspberry Pi kit.
Joint Bearing
40 sets
Joint Count
12 count
Joint Sensor Type
Servos provide real-time position, speed, and input-voltage feedback.
Motor Peak Torque
2.3 kgf·cm
Sensors
Camera
5 MP, 160-degree ultra-wide-angle Raspberry Pi camera included in the PI5 KIT.
IMU
ICM20948 9-axis motion tracker.
Battery and Runtime
Battery Capacity
5200 mAh
Battery Type
Two 18650 lithium-ion rechargeable cells; nominal 3.7 V per cell.
Runtime
1–2 h
Runtime
20–30 min
Compute Platform
Onboard Compute
ESP32-D0WDQ6-V3 real-time sub-controller for inverse solving and gait generation.
Onboard Compute
Built-in Raspberry Pi 5 with 4 GB memory.
Operating System
Pre-configured Raspberry Pi system image on an included TF card.
Software Algorithm
Multi-link legs and inverse-kinematics gait generation.
Evidence status: claimed
Safety and Protection
Safety System
Integrated protection against overcharge, overdischarge, overcurrent, and short circuit.
Interaction and Communication
Buzzer Volume
Integrated active buzzer.
Display
0.96-inch OLED display.
External Port
2×5P expansion ports expose ESP32 I/O and serial signals, 3.3 V, 5 V and ground.
External Port
USB Type-C download and communication port.
Lighting
Two RGB-LED indicators.
Smart Navigation
JSON motion task files are stored in ESP32 flash and replayed on demand.
Evidence status: claimed
Remote Controller
Browser-based control through an auto-generated Wi-Fi hotspot; no app installation required.
Visual Recognition
OpenCV face-recognition demonstration on the Raspberry Pi kit.
Evidence status: claimed
Visual Recognition
OpenCV motion-detection demonstration on the Raspberry Pi kit.
Evidence status: claimed
Visual Tracking
OpenCV color-tracking demonstration on the Raspberry Pi kit.
Evidence status: claimed
Development and Expansion
Operating Modes
Self-balancing posture control using the 9-axis tracker.
Evidence status: claimed
Secondary Development (SDK)
JSON control through serial RX/TX, USB Type-C, or HTTP requests.
Secondary Development (SDK)
All code is open source, with development documentation and tutorials.
Evidence status: claimed
Commercial Status
Status
Commercial
Price
Unknown
Release Date
Unknown
