X Square Robot logoX Square Robot

Quanta X1 Pro

Price
Unknown
Type
Mobile Manipulators
Subtype
Research Mobile Manipulator
Status
Released
Release Date
Unknown
Country/Region
China
Last Verified
2026-08-18
6 kg
Payload
≥8 h
Runtime
1 m/s
Walking Speed
1.69 m
Height

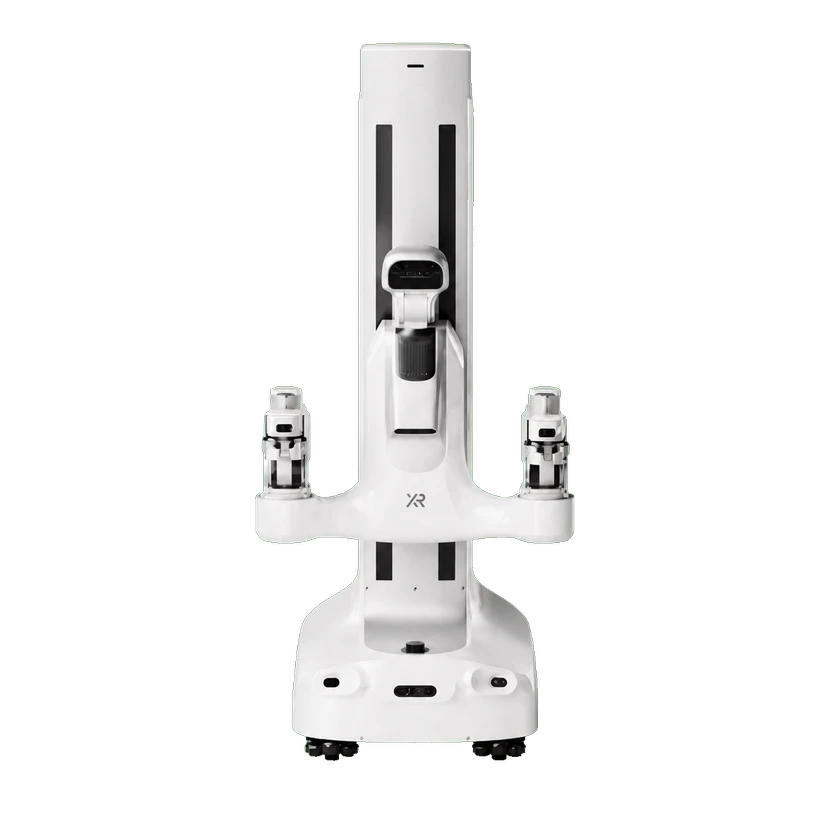

Quanta X1 Pro is X Square Robot’s general-purpose wheeled dual-arm robot for embodied-AI research and applications. It integrates the WALL-A embodied foundation model, supports ROS 2, multimodal teleoperation, and data-collection workflows.

1 / 1Quanta X1 Pro

Intelligence Profile

Learning ApproachOfficial claim
Teleoperation
Control ApproachOfficial claim
End-to-end policy

Capability Map

MobilityOfficial claim
Navigation

Official product material states multi-sensor fusion obstacle avoidance and a differential-drive mobile base with zero-radius turning.

ManipulationOfficial claim
Grasping

Official specifications list a 0–180 mm gripper stroke and 50 N maximum clamping force, and describe precision assembly and handling tasks.

AutonomyOfficial claim
Autonomous operation

The official page claims that the pre-integrated WALL-A embodied AI foundation model enables high-precision autonomous operation in complex environments.

Hardware Specification

Physical Specifications

Arm Span
649 mm maximum reach per arm (excluding gripper)
Height
1.69 m
Length
Chassis length 618 mm
Operating Temperature
−10–40 °C
Width
Shoulder width 658 mm

Mobility & Payload

Single-arm Payload
14 kg maximum payload per arm (30 s)
Payload
6 kg
Repeatability
1 mm
Walking Speed
1 m/s

Degrees of Freedom

DOF per Arm
6 DOF per arm
Total DOF
19 DOF

Mechanical Structure

Chassis
Differential drive; supports zero-radius turning
End-Effector
Gripper stroke 0–180 mm; maximum clamping force 50 N

Sensors

Camera
1 binocular RGB, 2 fisheye, and 2 wide-angle cameras
Depth Camera
3 RGB-D cameras
IMU
1 IMU sensor
LiDAR
LiDAR
Ultrasonic Sensor
6 ultrasonic sensors

Battery and Runtime

Charging Time
10%–100% in about 1 h 40 min
Runtime
≥8 h

Compute Platform

AI Model
WALL-A embodied AI foundation model (including open-source version)
CPU
Intel Core Ultra 7 155H
Memory
16 GB
Storage
512 GB

Commercial Status

Status
Released
Price
Unknown
Release Date
Unknown
