MagicLab logoMagicLab

MagicDog

MagicDog-W

Price
Unknown
Type
Quadruped Robots
Subtype
Consumer Quadruped
Status
Unknown
Release Date
Unknown
Country/Region
China
Last Verified
2026-08-21
10 kg
Payload
2–4 h
Runtime
0–3 m/s
Walking Speed
22.5 kg
Weight

MagicLab quadruped robot family.

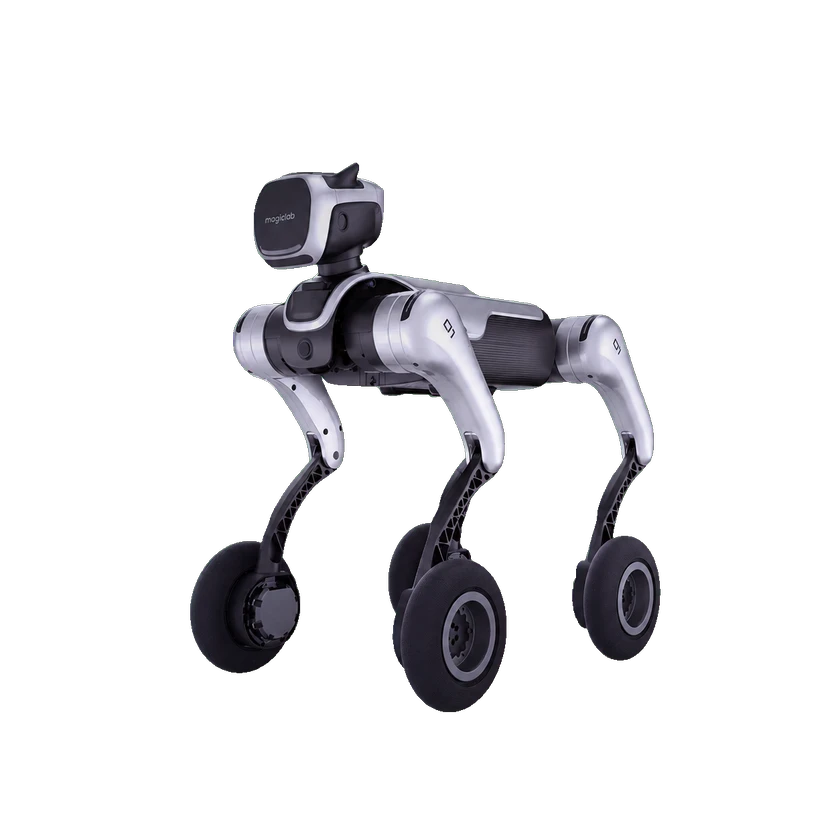

1 / 1MagicDog-W

Hardware Specification

Physical Specifications

Folded Dimensions
720 × 500 × 290 mm
Height
0.65 m
Materials
Aluminum alloy and high-strength engineering plastic
Operating Temperature
-5–40 °C
Standing Dimensions
670 × 350 × 650 mm
Weight
22.5 kg

Mobility & Payload

Max Gradient
40 °
Payload
10 kg
Peak Joint Torque
37.5 N·m
Step Height
60 cm
Walking Speed
0–3 m/s

Degrees of Freedom

Head DOF
100 °

Mechanical Structure

Bionic Face
24 types
Chassis
7-inch pneumatic tire
Joint Count
17

Sensors

Tactile Sensor
Touch sensor
Vision Sensor
2D LiDAR, stereo camera, depth camera, 4K camera, fisheye camera, and ultrasonic sensors

Battery and Runtime

Battery Capacity
8200 mAh
Battery Voltage
29.6 V
Runtime
2–4 h
Standby Time
8 h

Compute Platform

Onboard Compute
6 TOPS

Interaction and Communication

Audio I/O
Omnidirectional microphone and speaker
Communication
Wi-Fi 5, 4G module, and Bluetooth 5.0
OTA Update
Supported
Tactile Feedback
At least four touch methods with corresponding facial and voice feedback
Evidence status: claimed

Development and Expansion

Expansion Backplane
157 TOPS

Commercial Status

Status
Unknown
Price
Unknown
Release Date
Unknown
