MagicLab logoMagicLab

MagicDog Y1

Price
Unknown
Type
Quadruped Robots
Subtype
Consumer Quadruped
Status
Commercial
Release Date
Unknown
Country/Region
China
Last Verified
2026-08-19
150 kg
Payload
4–6 h
Runtime
70 kg (with battery)
Weight
0.81 m
Height

MagicLab’s industrial quadruped robot for inspection and complex-terrain work.

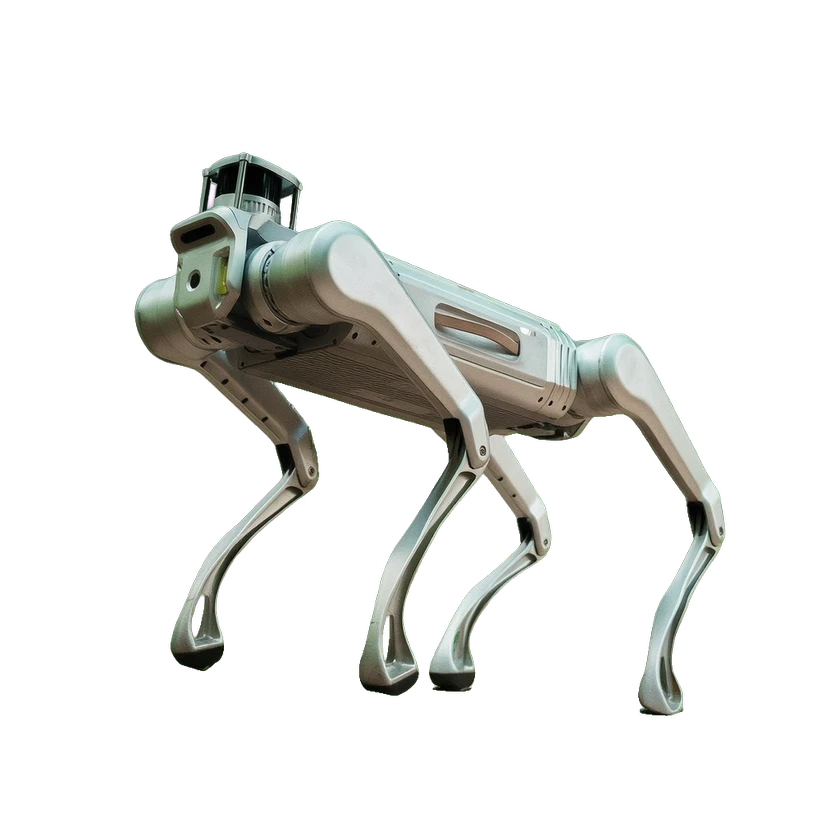

1 / 1MagicDog Y1

Hardware Specification

Physical Specifications

Height
0.81 m
Ingress Protection (IP)
IP67
Length
1050 mm
Materials
Aerospace-grade body materials
Operating Temperature
−20 to 55 °C
Standing Dimensions
1050 × 458 × 810 mm
Weight
70 kg (with battery)
Width
458 mm

Mobility & Payload

Max Gradient
≥45°
Max/Limit Payload
150 kg maximum payload
Max Speed
6 m/s
Payload
150 kg
Step Height
≥60 cm
Terrain Types
Slopes, stairs, rough ground and shallow water
Continuous Walking Payload
45 kg mobile payload

Sensors

Camera
2 × optical cameras
Depth Camera
2 × depth cameras
LiDAR
1 × 3D LiDAR
Sensors
3D LiDAR ×1, depth cameras ×2, optical cameras ×2

Battery and Runtime

Battery Capacity
45 Ah
Battery Voltage
54 V
Runtime
4–6 h
Runtime (Loaded)
>4 h with 20 kg load while continuously walking

Compute Platform

AI Compute Module
High-performance compute module
AI Compute (TOPS)
157 TOPS
CPU Cores
8 cores
Onboard Compute
8-core high-performance CPU

Interaction and Communication

Communication
Wi‑Fi 6, Bluetooth 5.2; optional 5G on some versions
External Port
24 V + RS-485 ×4, USB 3.0 ×4, 12 V + Ethernet ×3, EtherCAT ×1

Development and Expansion

Expansion Backplane
Thermal imagers, dual-spectrum gimbal cameras, gas sensors, acoustic imagers and PD sensors
Mounting Interface
Expansion board, rails, screw points and payload platform

Commercial Status

Status
Commercial
Price
Unknown
Release Date
Unknown
