MagicLab logoMagicLab

MagicDog

Price
Unknown
Type
Quadruped Robots · Consumer Quadruped
Status
Commercial
Availability
Not disclosed
Purchase
Not disclosed
Release Date
May 28, 2025
Country/Region
China
Last Verified
2026-08-19
Approx. 5 kg nominal payload
General Payload
1.5–3.0 h
Runtime
15.8 kg (without battery)
Weight

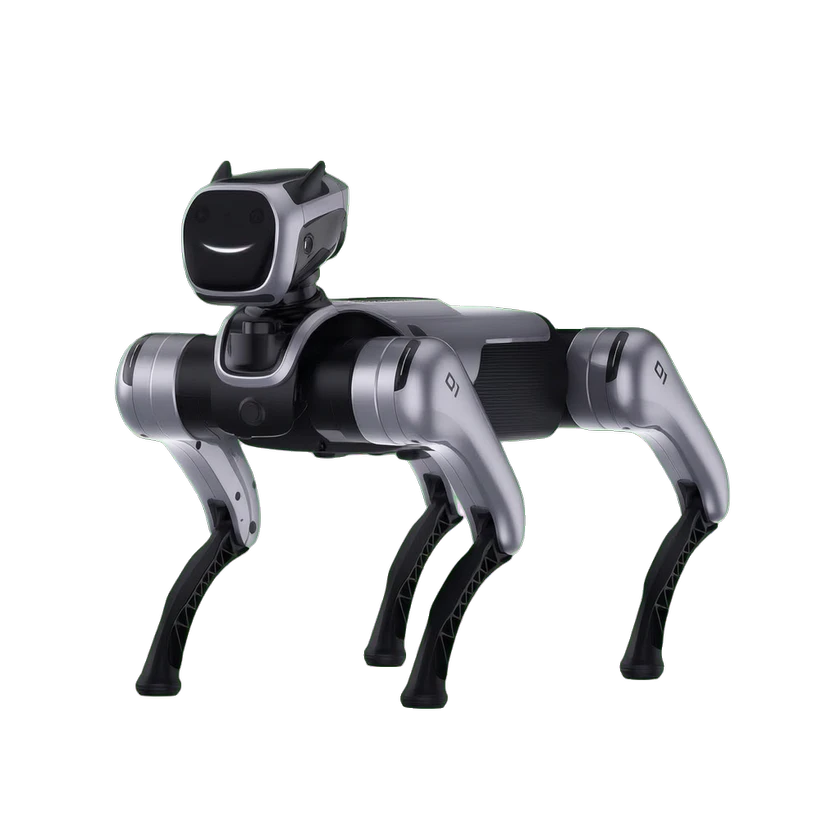

MagicDog PRO is MagicLab’s quadruped robot with LiDAR, stereo and depth cameras. It supports smart following, obstacle avoidance, voice, touch, and expressive interaction. This model integrates JD JoyInside for accurate dialogue understanding and coordinated language-and-body interaction.

1 / 1MagicDog PRO

Hardware Specification

Physical Specifications

Mechanical joint count
12 aluminum-alloy precision joint motors
Dimensions (Lying Down)
720 × 440 × 290 mm
Dimensions (Standing)
670 × 350 × 560 mm
Total degrees of freedom
13 DOF

Mobility & Payload

Maximum Grade Angle
40°
Max Speed
3.0 m/s
General Payload
Approx. 5 kg nominal payload
General Payload
10 kg limit payload
Peak Joint Output Torque
Approx. 37.5 N·m
Step Height
15 cm maximum climbing height difference
Terrain Types
All-terrain mode

Mechanical and mounting

Weight
15.8 kg (without battery)

Mechanical Structure

Actuator Model
High-power-density motion unit
Joint Motion Range
Body: −37.0° to 45.0°
Joint Motion Range
Thigh: −207.5° to 72.5°
Joint Motion Range
Shank: −143.0° to −30.0°

Sensors

Obstacle Avoidance
Supported
Sensors
2D LiDAR, stereo camera, depth camera, 4K HD camera, fisheye camera, ultrasonic sensor

Battery and Runtime

Adapter Output
33.6 V, 3.5 A, 149 W
Battery Capacity
8.2 Ah quick-release battery
Battery Voltage
29.6 V, 240.7 Wh, quick-release
Charging Dock
Included
Max Power
3200 W
Power Supply
22–36 V
Runtime
1.5–3.0 h

Compute Platform

Onboard Compute
8-core high-performance CPU

Interaction and Communication

Display
Expression display
Smart Following
Supported
Lighting
Lighting display
Microphone
Microphone array
Smart Navigation
Patrol mode
OTA Update
Supported
Tactile Feedback
Touch interaction
Loop Video Recording
Photo and video recording
Video Transmission
Real-time video transmission
Visual Recognition
Human recognition
Voice Interaction
AI voice interaction

Development and Expansion

Graphic Programming
Supported
Operating Modes
Emotion engine
Operating Modes
Head-body linkage
Operating Modes
Action imitation
Operating Modes
Action stunts
Secondary Development (SDK)
Unsupported

Commercial Status

Status
Commercial
Price
Unknown
Release Date
May 28, 2025

Timeline

  1. Robot release
    MagicDog PRO
