Deep RoboticsDEEP Robotics Lite3
Jueying Lite 3 Experience Edition
Starting at CNY 1.69
CommercialType
Quadruped Robots
Status
Commercial
Release Date
Unknown
Warranty
Unknown
Location
Unknown
Last Verified
2026-07-01
0.406 m
Height
12 kg
Weight
5 kg walking load
Payload

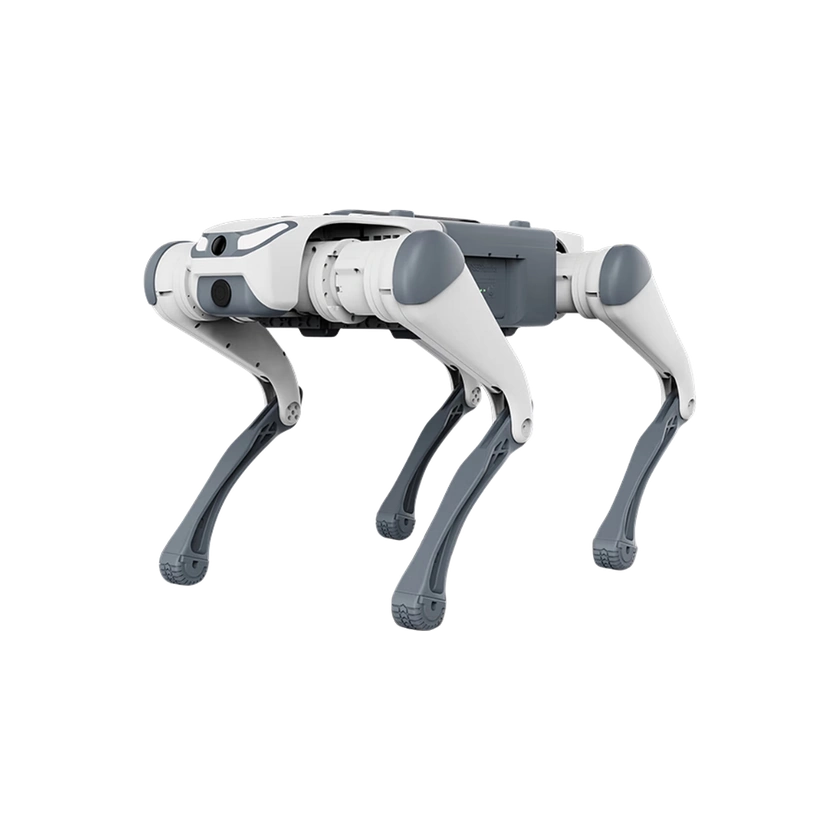

Jueying Lite 3 Experience Edition is a compact quadruped robot from DEEP Robotics, with a 12 kg body, 5 kg walking load, 1.5–2 hour endurance, 5 km mileage, obstacle-stop and visual-following functions, plus SDK and API interfaces for secondary development.
1 / 1
Specifications
Basic Information
Country
China
Exterior Version
Experience Edition
Made In
China
Manufacturer
DEEP Robotics
Model Alias
Lite3
Robot Name
Jueying Lite 3
Robot Type
Quadruped robot
Status
Commercial
Website
https://www.deeprobotics.cn/en/index/product1.html
Body Specifications
Height
0.406 m
Length
610 mm
Locomotion Type
Four-legged walking
Standing Dimensions
610 mm × 370 mm × 406 mm
Weight
12 kg
Width
370 mm
Performance
Max Gradient
40°
Payload
5 kg walking load
Max Step Height
18 cm
Terrain Types
Slopes and stairs
Degrees of Freedom
DOF per Leg
3 DOF per leg
Total DOF
12 DOF
Sensors
Obstacle Avoidance
Front/rear obstacle stop; visual following
Battery and Runtime
Range
5 km
Runtime
1.5–2 h
Development and Expansion
Secondary Development (SDK)
Models, motion-control SDK and APIs, and perception-development interfaces with sample code
